P6-5

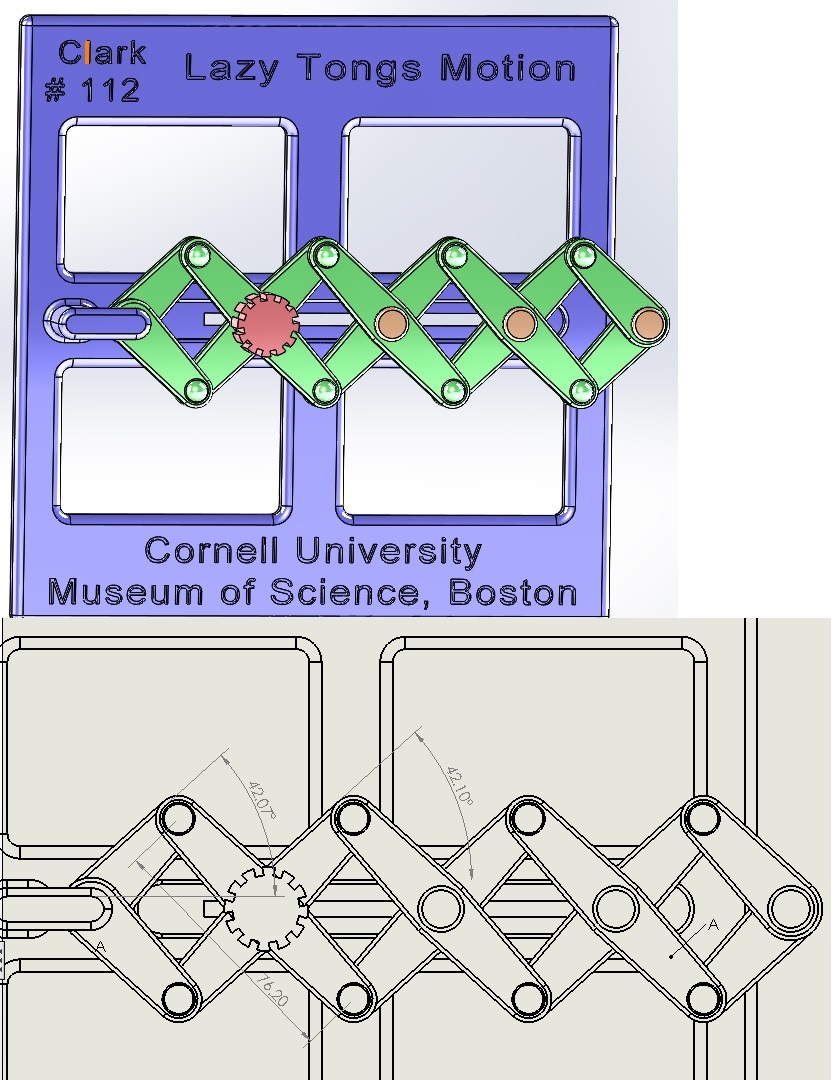

The Lazy Tongs Model (Boston Museum of Science) has dimensions shown in the drawing (in mm). If the links are oriented 42 degrees from horizontal and the handle has a velocity to the right of 2.deltadeltadeltadelta mm/s, determine the velocity of the end joint and the angular velocity of link A indicated.
